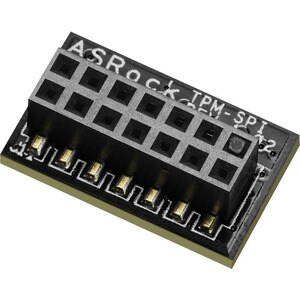

Features:

SPI interface
TPM 2.0
13 pin connector
Meeting Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform qualification
Random Number Generator (RNG) according to NIST SP800-90A
Full personalization with Endorsement Key (EK) and EK certificate
Standard (-20..+85°C) and Enhanced temperature range (-40..+85°C)
PG-VQFN-32-13 or PG-UQFN-32-1 package
Pin compatible to OPTIGA™ TPM SLB 9670 TPM1.2 version
Optimized for battery operated devices: low standby power consumption (typ. 110µA)
24 PCRs (SHA-1 or SHA-256)
7206 Byte free NV memory
Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN)
Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX)
Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_MIN)
Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_MIN)
Up to 8 NV counters
Up to 1 kByte for command parameters and response parameters
1280 Byte I/O buffer

System Requirements:

Dimensions:

Pin Dimension:
