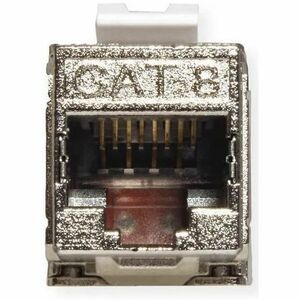

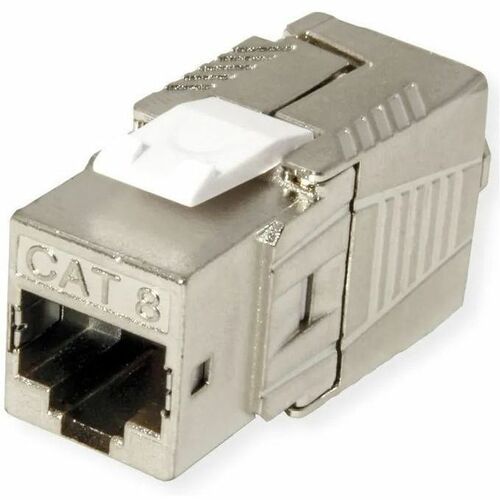

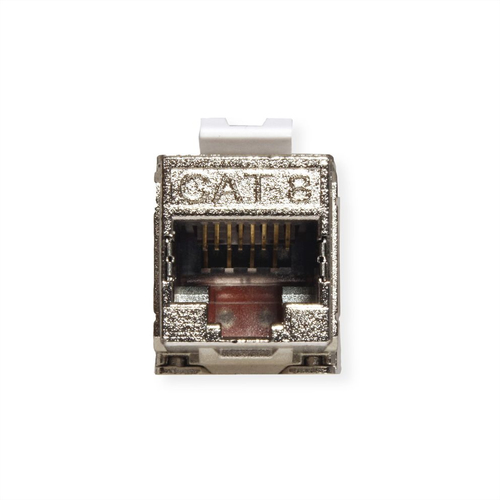

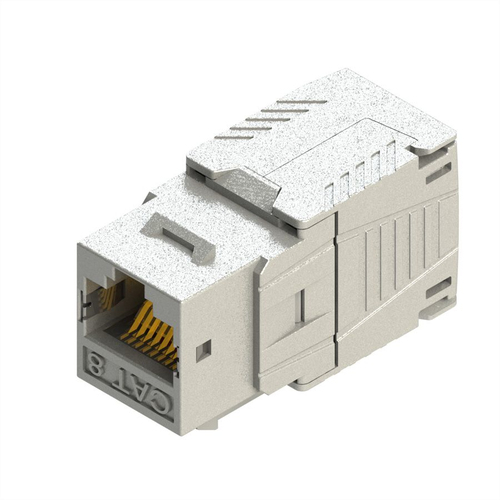

Cat.8 Keystones are ideal for use in 10 Gigabit Ethernet networks

Keystone in proven ROLINE quality!

The ROLINE Cat.8 Keystones are ideal for use in Gigabit Ethernet networks
Support data transfer rates up to 10/25/40 Gbit/s with a bandwidth of 2000 MHz

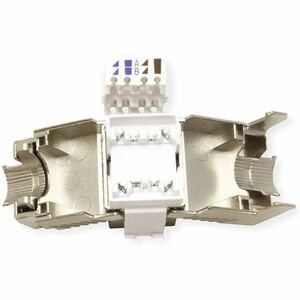

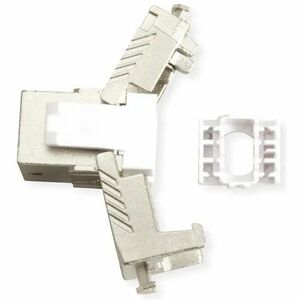

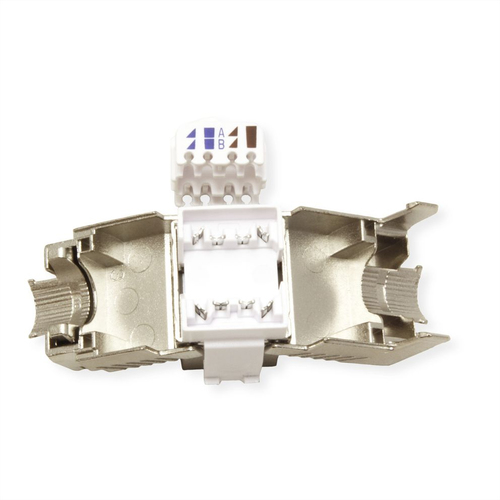

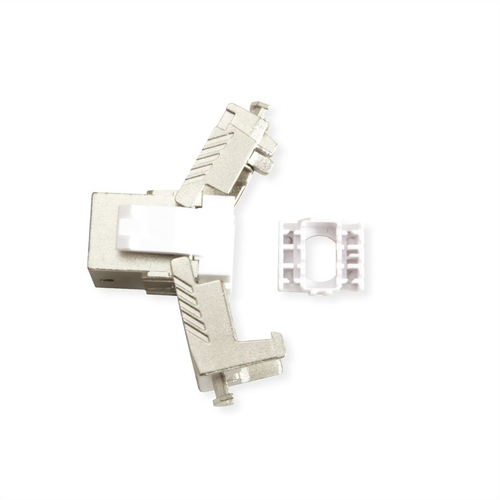

Connect the cable to the Keystones via LSA connections without special tools - place the cable ends simply into the guides (with color coding), close and compress the module - the connection is ready for use
The Keystone modules can be "latched" into a 19'' module support rack, which is optionally available in black (26.11.00360) or light gray (26.11.0359).
Cable entrance diameter range: 5.5mm - 9.0mm
Insulation diameter range: 0.95mm - 1.62mm
Solid and Stranded conductor: 22AWG - 24AWG for Cat.8 type
Wire coded scheme: EIA/TIA 568

For a structured cabling system we recommend to use the following components: 21.15.0005 ROLINE S/FTP Cable Cat.8, Solid Wire, LSOH, 24 m; 21.15.1853 ROLINE S/FTP Patch Cord Cat.8, solid, LSOH, yellow, 3 m; 21.15.1863 ROLINE S/FTP Patch Cord Cat.8, stranded, LSOH, yellow, 3 m; 26.11.0381 ROLINE C8 Shield RJ45 Keystone, toolless. The accredited German laboratory GHMT has tested and certified this product combination, in a 2 Connector Channel (30m), Copper, Class I up to 2 GHz; certificate no. c7794a-23.
